LC 滤波器
    发布时间: 2024-12-13 15:24

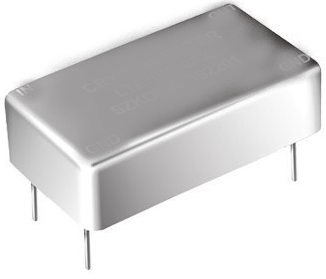

LC 滤波器


LC 带通滤波器
Part Number

Center FRequency (MHz)

Pass Band (MHz)Insertion Loss (dB)40dB bandwidth (MHz)Ref. Size (mm)
LB320M40C5A
32040≤4.0≤13030*15*9
LB198M20C5A
19820≤4.5≤5830*15*9
LB128M20C5A12820≤4≤5830*15*9
LB133.4M10C5A133.410≤7≤3236*16*9
LB133.4M10E5A133.410≤5≤2836*16*9
LB115M6C5A1156≤7≤2436*16*9
LB70M5C5A705≤4.5≤12.536*16*9
LB63M5C5A635≤4.5≤12.536*16*9
LB60.5M5C5A60.55≤4.5≤12.536*16*9
LB24.384M1C5A24.3841.2≤3.5≤530*15*9
LB10M1C5A101≤2.5≤4.525*15*9
LB10M05C5A100.5≤4.5≤2.825*15*9
LB2M02B5A20.2≤3≤0.5636*16*10


LC 带阻滤波器
Part Number

Center FRequency (MHz)

Insertion Loss (dB)3dB bandwidth (MHz)Restrictions at f0 (dB)
Ref. Size (mm)
LR13.56M03X5A13.56
≤0.5

25*15*10
LR40M3.5C5A40
≤1.03.55030*15*9
LR40M6C5A40
≤1.566030*15*9
LR53M35C5A53
≤1.0358030*15*9
LR140M50C5A140
≤1.5505530*15*9
LC 低通滤波器
Part Number

Center FRequency (MHz)

Pass Band

 (MHz)

Insertion Loss (dB)40dB bandwidth (MHz)Ref. Size (mm)
LL174MC5A174

≤1.025030*15*9
LL350ME5A350
≤1.040530*15*9
LL400MC5A400
≤1.056030*15*9
LC 高通滤波器
Part Number

Center FRequency (MHz)

Pass Band  (MHz)Insertion Loss (dB)40dB bandwidth (MHz)Ref. Size (mm)
LH260MC5A260
≤1.521530*15*9
LH285ME5A285

≤1.523830*15*9
